2007 GMC Duramax Installation

I have installed the Refiner unit on my truck.


Application follows:

2007 GMC Duramax, under hood mount with sandwich adapter.


Parts needed:

3/8-1/8”NPT thread reducer x2.

10mm thread x 20mm long bolts for bracket x2.

10-1/2 feet hose required.


Photo one shows under hood mount next to a/c pump using 10mm holes, minor re-drill of bracket.

Photo 2 and 3 show sandwich adapter.

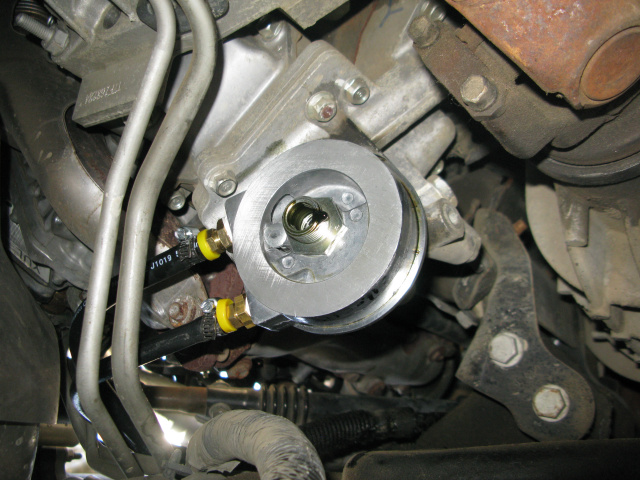

Photo 4 shows adapter installed.

Photo 5 shows adapter with filter.
